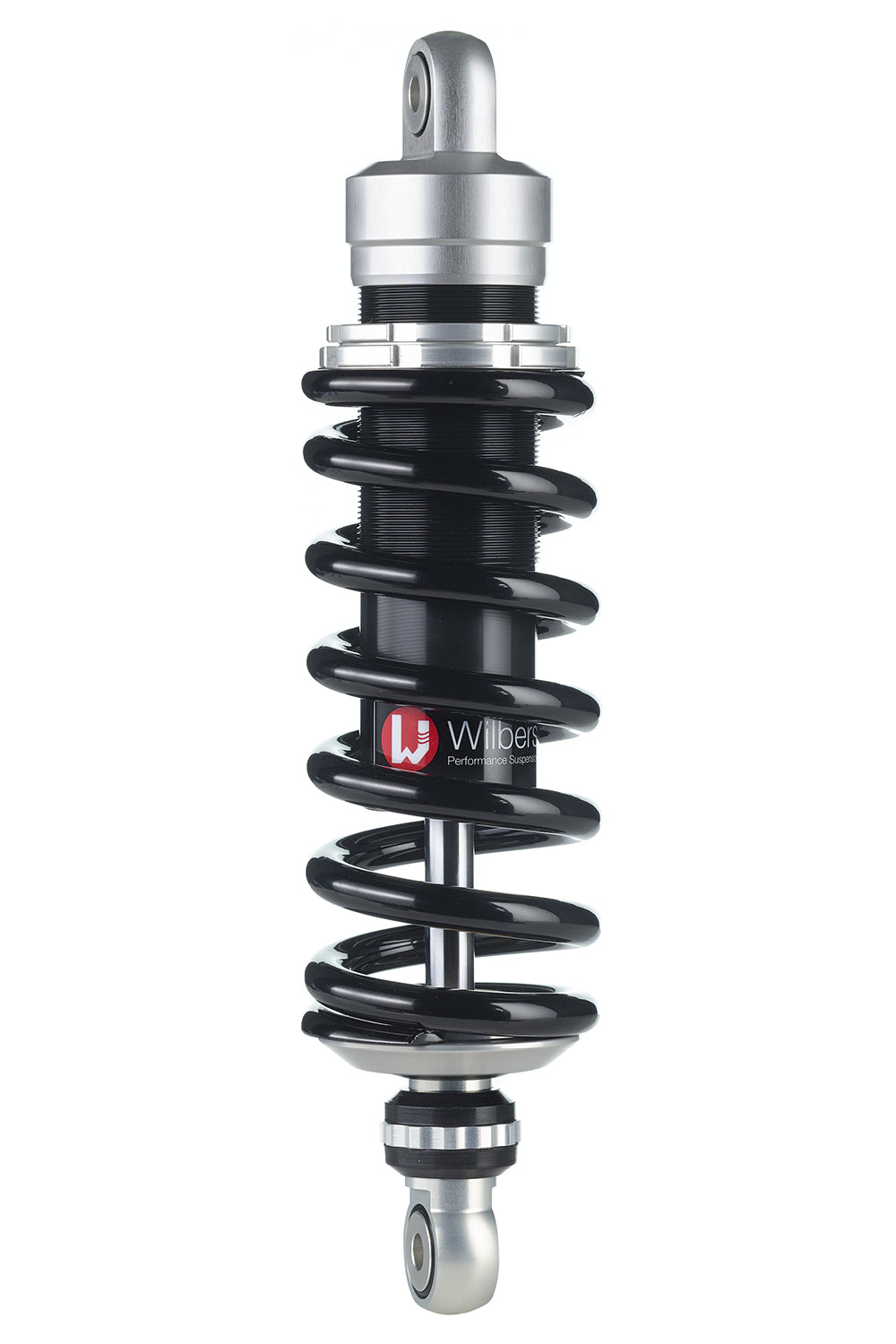

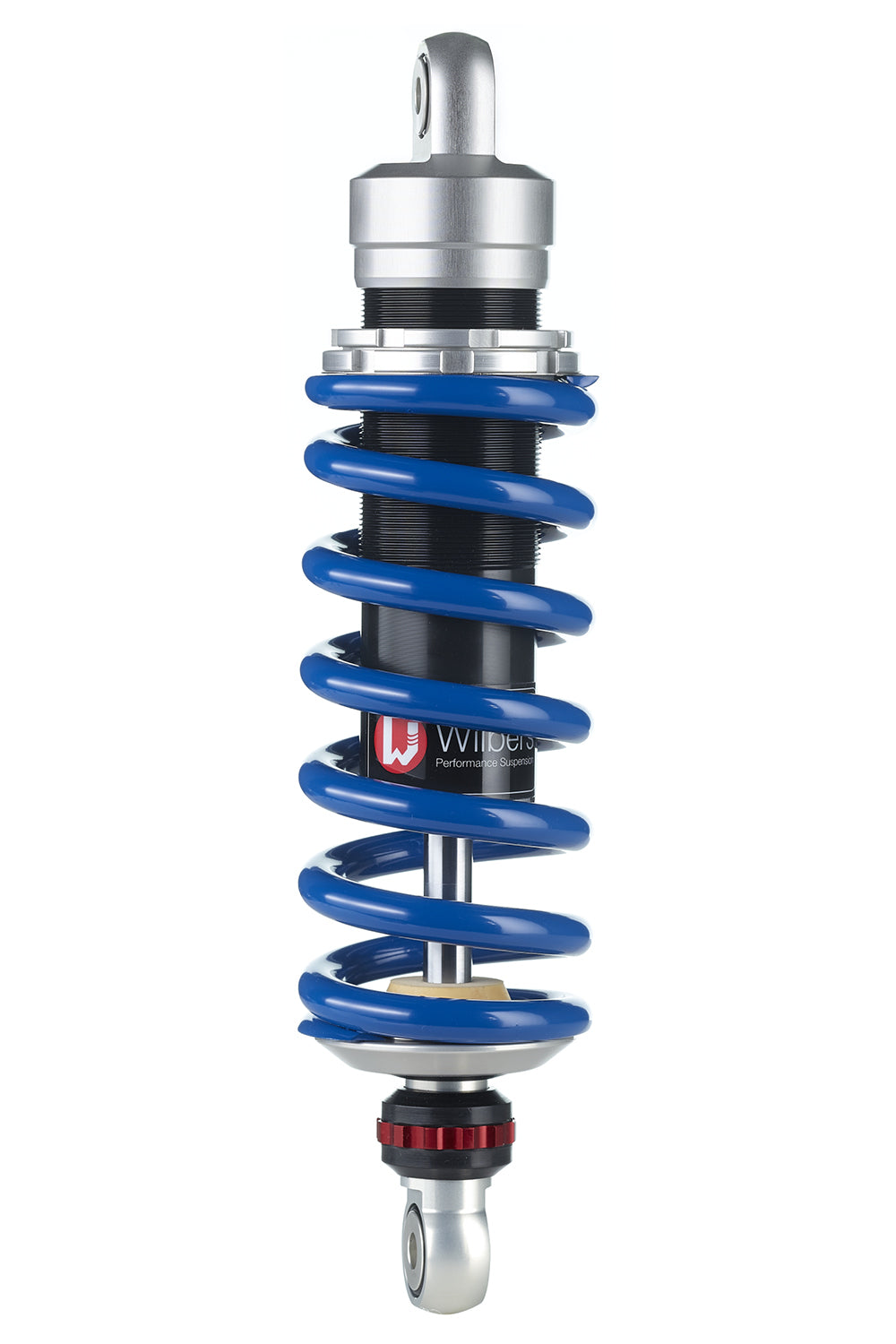

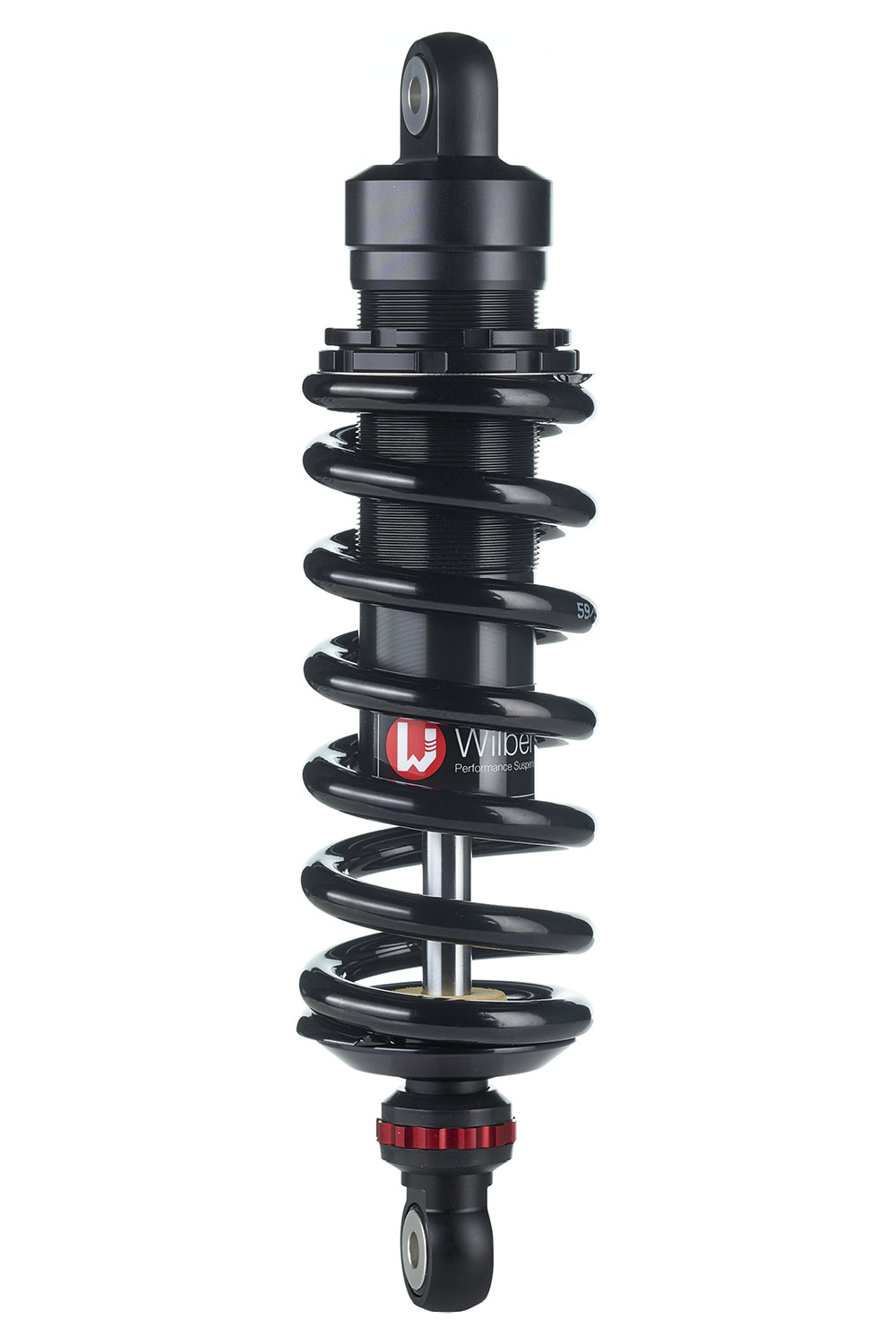

Shock Absorber Type 640 Road
The suspension solution from Wilbers Products realizes a better response of the fork. This is achieved by swapping the linear springs for progressive ones. The second spring rate provides a larger reserve.
On the rear axle the spring rate is adjusted by a slightly harder spring, in combination with optimized rebound and compression damping. Our solution offers a larger adjustment range than the original spring strut.
The suspension geometry on the front and rear axle was adjusted via negative spring travel.
The basic edition of the Wilbers Adjustline mono shock absorber comes along with the same technology as the more complex versions. The difference is that here we leave out the compression reservoir and thus the options for adjusting high- and low-speed compression. Nonetheless this shock absorber does not make any compromises concerning response behavior or durability. The radial piston, wet run, teflon guided self-aligning bearings and other features redefine the quality of a standard shock. Like usual the spring preload can be continuously tuned and the rebound can be set over an open-bleed system in 22 clicks. The shock absorber can be retrofitted with many other Wilbers accessories.
Product may vary from picture.
Additional Notes:
Compatible vehicles:
- 2022 - 2025 Yamaha Tracer 7 (MTT690) | RM30 / RM31
Pickup available at EPM Performance Imports
Usually ready for pickup or shipment in 3-4 weeks.
Shock Absorber Type 640 Road
Edition: Blackline | Preload Adjuster: Hook Wrench | Lift/Lowering: Std
-
EPM Performance Imports
Pickup available, Usually ready for pickup or shipment in 3-4 weeks.
3 Fedornak Freeway
Unit 1
Whiting NJ 08759
United States+17327869777
